Cortical Atlas Parcellations in MNI space

Below you find information about how and where to obtain cortical atlas parcellations suitable for fMRI/dMRI based connectomic analyses using Lead-DBS.   If an atlas you know of is missing, please contact us. Also, we are interested in distributing cortical parcellation atlases preinstalled within Lead-DBS, if possible.

Looking for subcortical atlases in MNI space? Please see this page.

Please read our philosophy on including code and datasets into Lead-DBS. In brief, inclusion of datasets does not mean endorsement or approval of the datasets you find within Lead-DBS.

Mindboggle 101 (Klein 2012)

The Mindboggle 101 dataset consists of 101 labeled brain images that have been manually labeled largely following the Desikan protocol. It also consists of a group-level parcellation atlas which has been included into Lead-DBS for connectomic analyses.

Cortical Area Parcellation from Resting-State Correlations (Gordon 2016)

The Cortical Area Parcellation from Resting-State Correlations dataset consists of 333 cortical patches segmented using resting-state fMRI (Gordon 2014).

Consensual Atlas of REsting-state Network (CAREN, Doucet 2019)

The Consensual Atlas of Resting-state Networks (CAREN) consists of 5 networks. It was constructed based on four reliable functional brain atlases, using a hierarchical clustering approach to iteratively link pairs of voxels with highest probability of belonging to the same network.

MICCAI 2012 Multi-Atlas Labeling Workshop and Challenge (Neuromorphometrics)

The MICCAI 2012 Multi-Atlas Labeling Workshop and Challenge dataset is a manually segmented whole-brain parcellation (see refs).

How to obtain the atlas:

Brainnetome Atlas parcellation (Fan 2016)

The Brainnetome atlas is an in vivo map based on fMRI and dMRI, with more fine-grained functional brain subregions and detailed anatomical and functional connection patterns for each area. Currently, the Brainnetome atlas contains 246 subregions of the bilateral hemispheres.

Automated Anatomical Labeling (Tzourio-Mazoyer 2002)

The AAL atlas is probably the most widely used cortical parcellation map in connectomic literature.
On 7th August 2015, an updated version (AAL2) has been released.

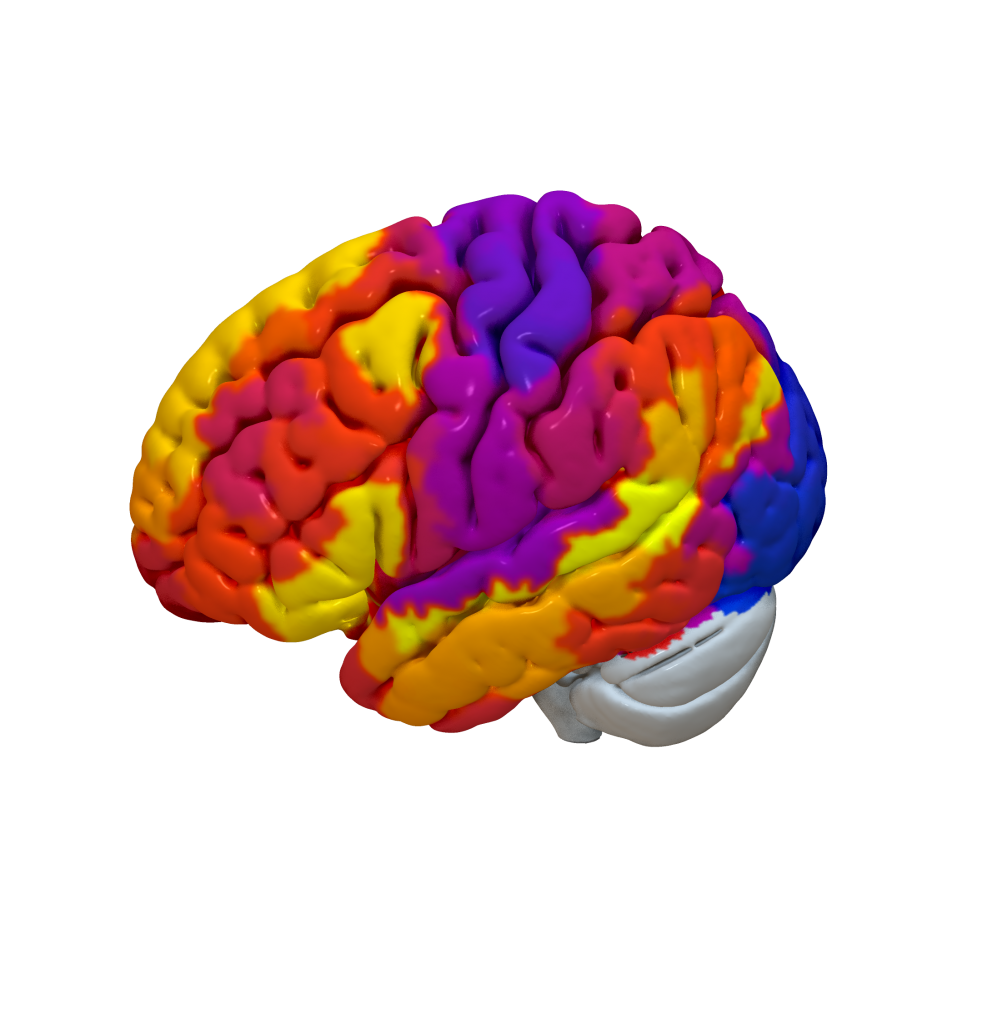

Local-Global Parcellation of the Human Cerebral Cortex (Schaefer 2018)

Based on the influential brain networks published by Thomas Yeo (2011), these novel parcellations add further refinement by subparcellating the global networks based on a local gradient approach. Parcellations come in several version, breaking down the cortex into up to 1000 regions based on rs-fMRI.

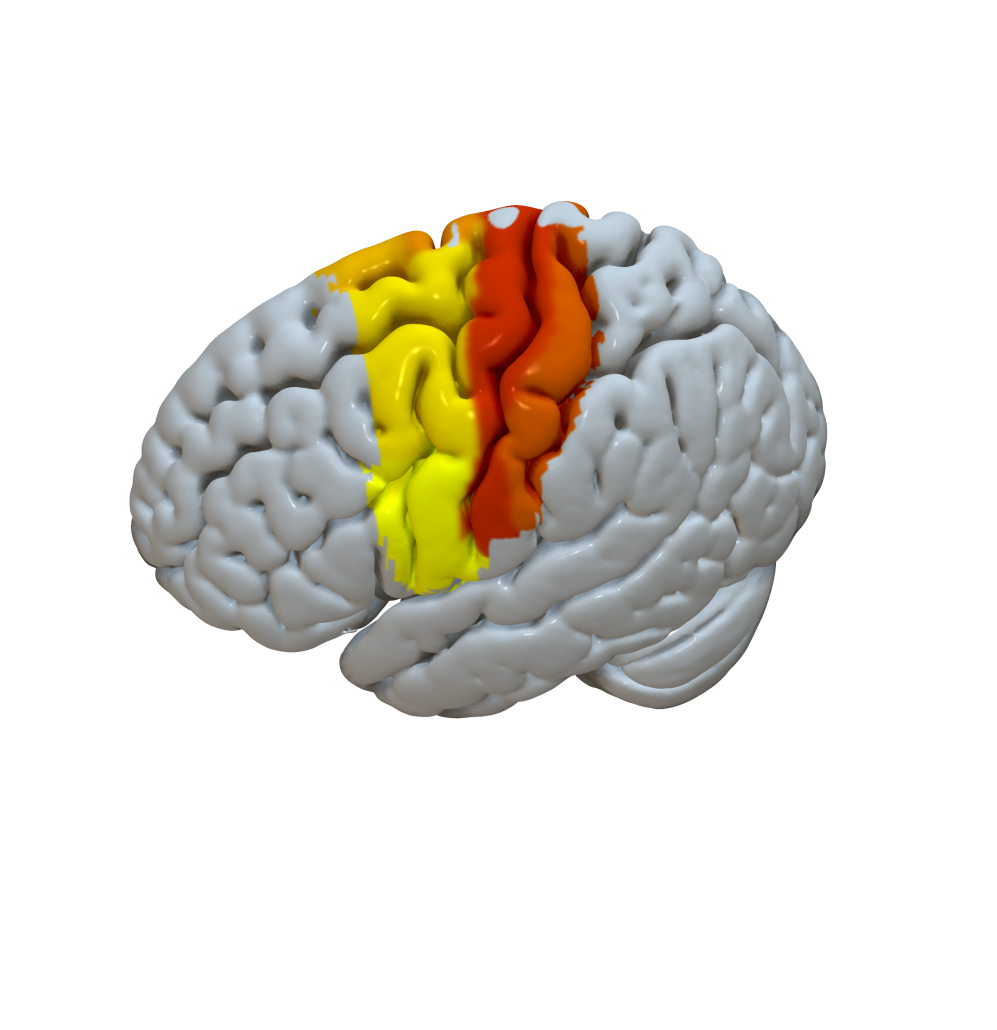

Human Motor Area Template (Mayka 2005)

Not exactly a whole-brain parcellation but a parcellation of the human (pre-)motor cortex.

Sensorimotor Area Tract Template (Archer 2017)

Not exactly a whole-brain parcellation but a template of the corticospinal tract originating from sensory & motor areas in MNI space.

Harvard-Oxford cortical/subcortical atlases (Makris 2006)

A frequently applied cortical atlas motivated by macroanatomical boundaries.

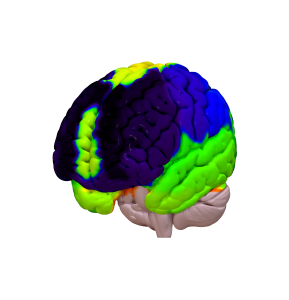

AICHA: An atlas of intrinsic connectivity of homotopic areas (Joliot 2015)

The AICHA atlas – a detailed cortical atlas based on functional connectivity in 281 subjects.

Hammersmith atlas (Hammers 2003, Gousias 2008, Faillenot 2017, Wild 2017)

Adult brain maximum probability map (“Hammersmith atlas”; exists with either 83 or 95 parcels) in MNI space.

Yeo 2011 functional parcellations (Yeo 2011)

fMRI atlas based on 1000 subjects exhibiting co-activations of the brain. Two versions are available that include 7 vs. 17 neworks.

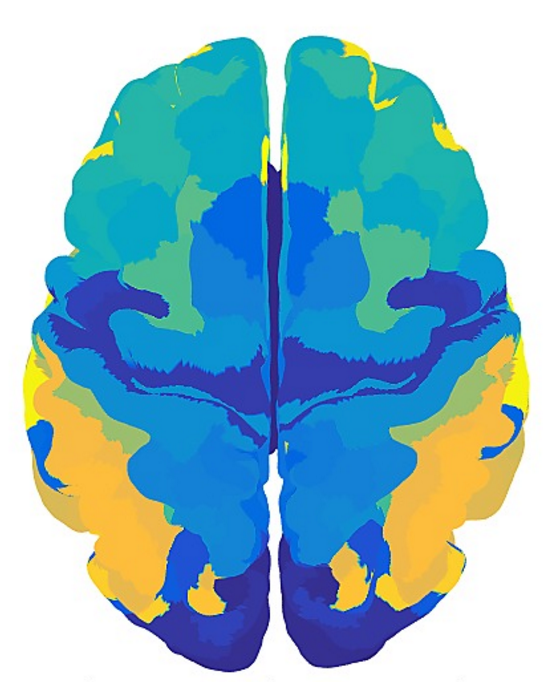

HCP MMP 1.0 (Glasser 2016)

Probably the most detailed cortical in-vivo parcellation yet, the HCP MMP 1.0 has been built using surface-based registrations of multimodal MR acquisitions from 210 HCP subjects. 180 areas per hemisphere have been identified. Please note that due to the nature of how this parcellation has been built, it may not be ideally suited for usage within Lead-DBS.

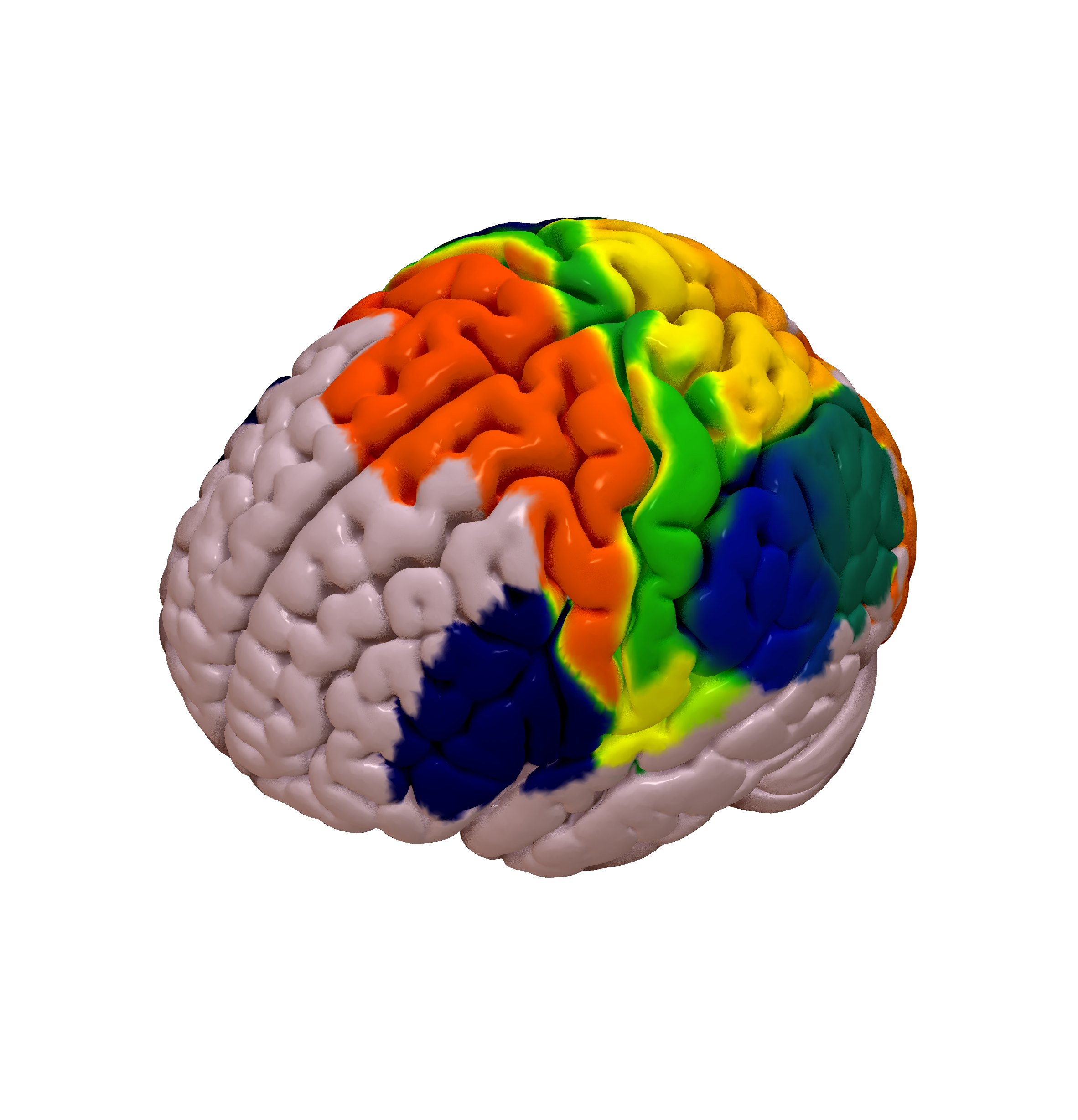

JuBrain / Juelich histological atlas (Eickhoff 2005)

A probabilistic atlas created by averaging multi-subject post-mortem cyto- and myelo-architectonic segmentations, performed by the team of Profs Zilles and Amunts in Jülich and Düsseldorf. Cytoarchitectonic areas were analyzed in histological sections of ten human postmortem brains. The maps are based on image analysis and statistical criteria for localizing areal borders. Cytoarchitectonic maps have been developed during the past 20 years as a joint effort of many doctoral students, post docs and guest scientists. Maps, which have been published, are available for the scientific community.

PrAGMATiC (Huth 2016)

Advanced and modern functional atlas based on task fMRI.

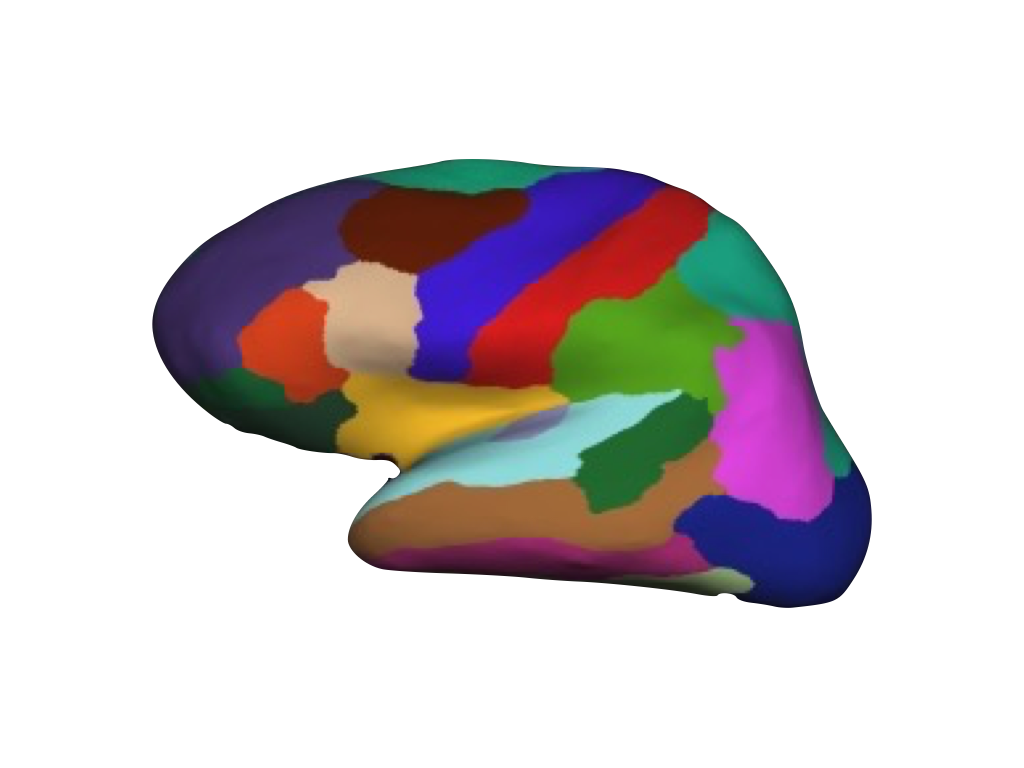

Desikan-Killiany Atlas (Desikan 2006)

A parcellation scheme widely used in the freesurfer world subdividing the human cerebral cortex on MRI scans into gyral based regions of interest.

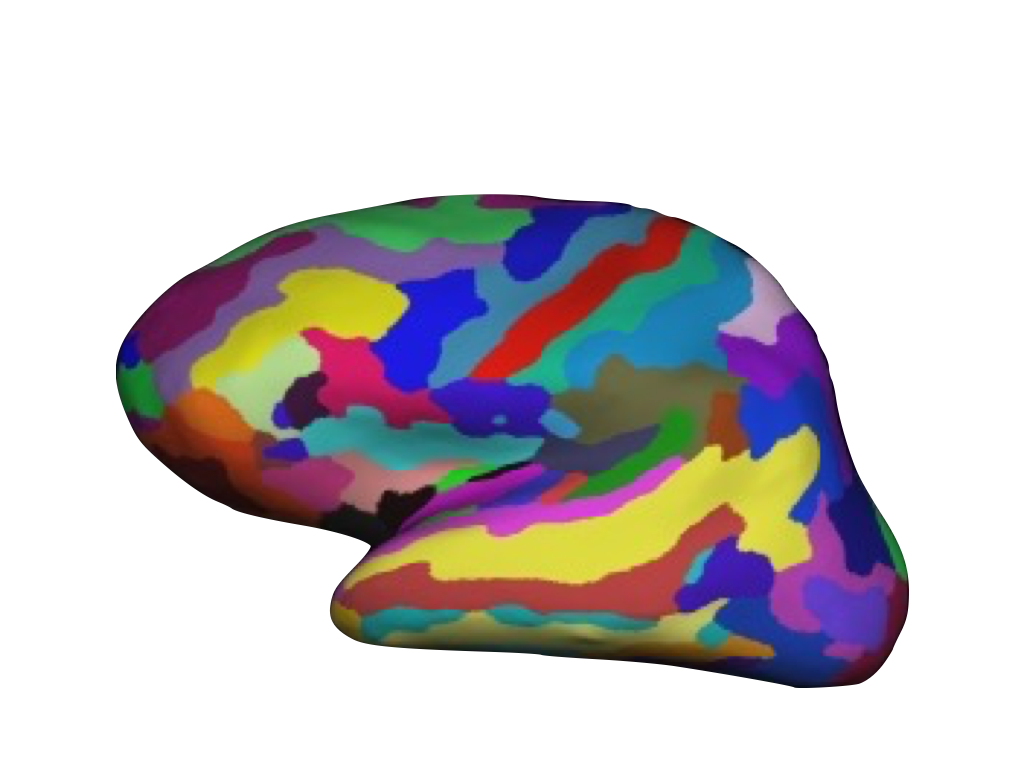

Destrieux Atlas (Destrieux 2010)

A parcellation scheme widely used in the freesurfer world based on sulcal depth and yielding precise automated definition of cortical gyri and sulci.

MarsAtlas (Auzias 2016)

A cortical parcellation model based on macroanatomical information.

fMRI-based random parcellations (Craddock 2011)

Fine-grained random parcellations informed by rs-fMRI data.

Voxelwise parcellations (Lead-DBS)

Three voxel-wise parcellations are supplied with Lead-DBS and have been built to create standardized connectivity matrices that exhibit off-diagonal elements that appear as parallel lines to the main diagonal (inter-hemispheric connections between homologous regions). Three versions (35 thousand, 15 thousand and 8 thousand nodes) are pre-installed within Lead-DBS. Together with advanced normalization algorithms (such as multimodal ANTs defaults and DARTEL pipelines), these connectivity matrices allow for high-definition connectomic analyses in parcellation schemes that are comparable across studies.

How to obtain the atlas:

  • These parcellation schemes come preinstalled within Lead-DBS.

Related citations:

  • Parcellation schemes are not described in a separate publication. Please cite Lead-DBS software including version and webpage to describe the data used in a reproducible fashion.

SUIT Cerebellar parcellation (Diedrichsen 2006)

Not a whole-brain parcellation but parcellating the cerebellum into anatomical regions. Useful to test structural/functional connectivity between DBS leads and cerebellar subregions.

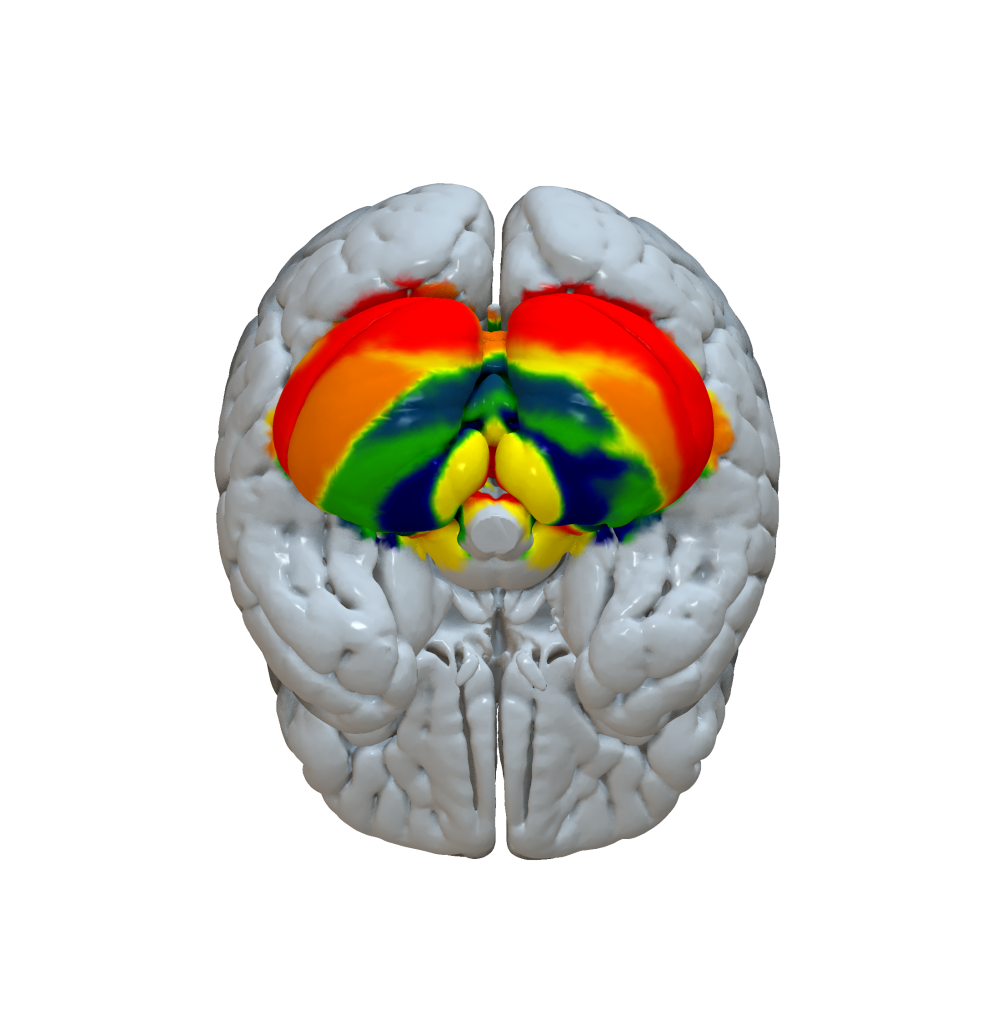

Buckner functional cerebellar parcellation (Buckner 2011)

Not a whole-brain parcellation but a parcellation of the cerebellum into seven (or seventeen) functional zones that correspond to the Yeo 2011 whole-brain parcellations based on 1000 healthy subjects.

Cortical Functional Networks (Yeo 2011)

An atlas based on same functional and structural sequences from 1000 young, healthy adults were registered using surface-based alignment.

Functional Connectivity Atlas 7 Networks (Yeo 2011)

An atlas based on same functional and structural sequences from 1000 young, healthy adults were registered using surface-based alignment.

Shen Atlas (Shen 2009)

The Shen268 atlas was derived based on a group-wise spectral clustering algorithm using resting-state fMRI data from 45 subjects acquired at Yale MRRC. The atlas contains 268 functional coherent nodes, which are further grouped into eight resting state networks.

The Shen368 atlas has 327 cortical nodes that were constructed using the group-wise spectral clustering
algorithm, 14 subcortical nodes that were defined using the anatomical definition, and 26 cerebellum
nodes that were derived based on Yeo’s 17 networks, and one brain stem node.

Myelo- and cytoarchitectonic microstructural and functional human cortical atlases (Pijnenburg 2021)

Digital versions of six classical human brain atlases in common MRI space. The cortical atlases represent a range of modalities, including cyto- and myeloarchitecture (Campbell, Smith, Brodmann and Von Economo), myelogenesis (Flechsig), and mappings of symptomatic information in relation to the spatial location of brain lesions (Kleist).

Julich-Brain Cytoarchitectonic Atlas (Amunts 2020)

The Julich-Brain Cytoarchitectonic Atlas presents cytoarchitectonic maps in several coordinate spaces, such as MNI colin27, MNI152, and freesurfer. These maps originate from peer-reviewed probability maps that define both cortical and subcortical brain regions. Notably, these probability maps account for the brain’s inter-individual variability by analyzing data from ten post-mortem samples. For a whole-brain parcellation, the available probability maps are combined into a maximum probability map by considering for each voxel the probability of all cytoarchitectonic brain regions, and determining the most probable assignment. Continuously evolving, the Atlas is regularly updated with new areas. Furthermore, it stands as a reference atlas for the Human Brain Project and is deeply embedded within the European research infrastructure platform, EBRAINS. The siibra toolsuite provides an automated access to the Atlas, to speed up your work.
